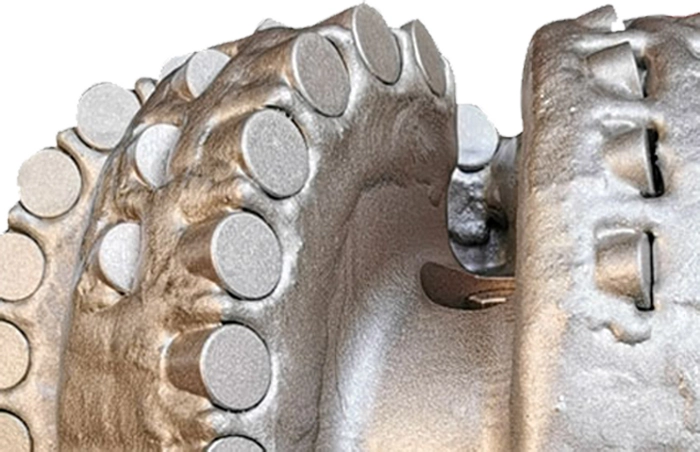

 Gauge Surface Premium arc PDC cutter gauge can reduce the abrasion of rock on the bit’s body and increase wear resistance and stability of the drill bit body. |

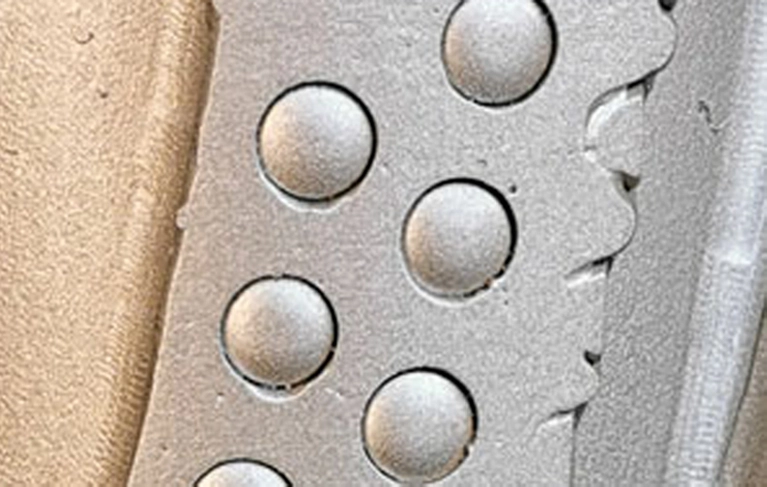

Cutting Teeth
Combined with the sharp cutting characteristics of tungsten carbide material,the aggressiveness and wear resistance of the drill bit can be improved by rationally configuring high-quality small-size PDC cutters and maximizing the local cutters equivalent density. |

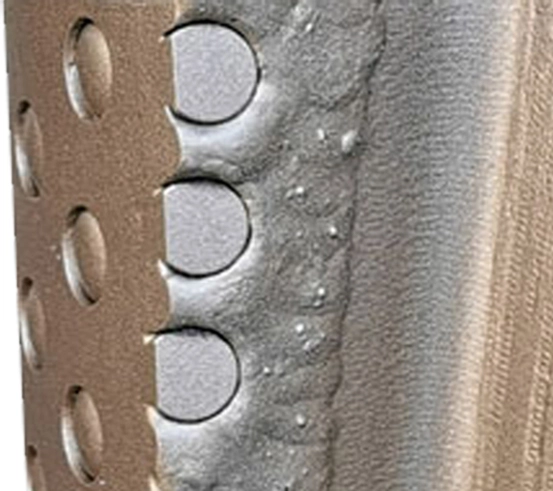

 Gauge cutter Gauge cutters can absorb high stress effectively and minimize cutter fracturing and wearing,thus enhance the wear resistance of cutters. |

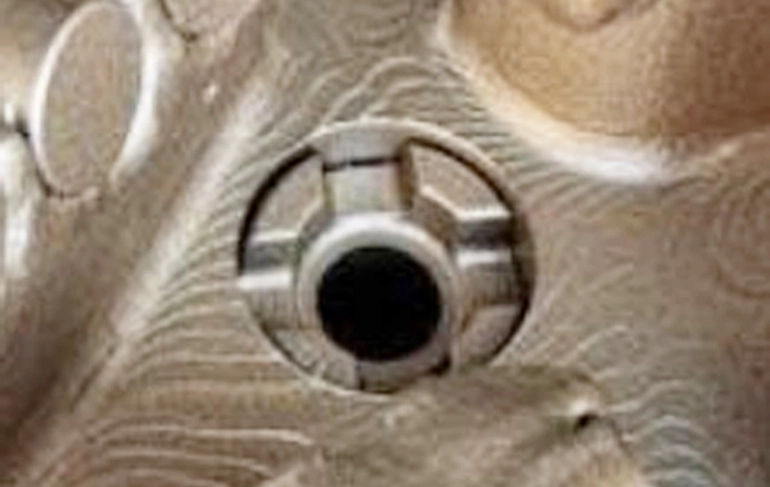

Nozzle
Interchangeable screw nozzles can effectively flush the impact cutting debris. |
|

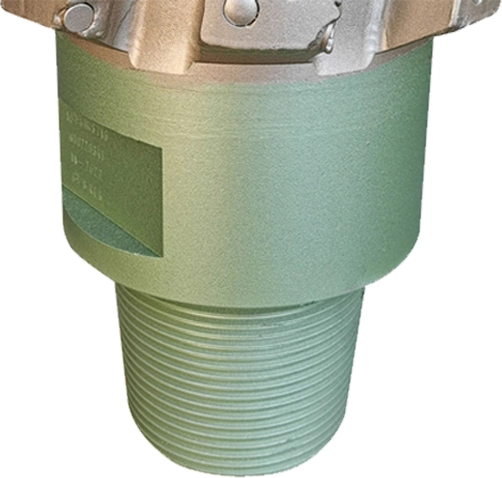

Connection Thread
API International Standard. |
|
Support Customization
HAOQI products can be customized,if you have special requirements for drill bits,please contact us in any way. |
|
1. The Hole Preparation
①Make sure the hole is clean.
②If necessary,make a clean-up trip by the prior bit with a junk basket.
2. The Bit Preparation
①Transport bit in box to rig floor to avoid cutter damage.
②Remove bit from the box to wooden or rubber floor carefully.
③Inspect bit for damage.
④Record bit series No and model information.
⑤Check inside of bit and make sure it clear.
3. Making Up The Bit
①Fit breaker to bit and engage latch.
②Clean and grease pin.
③Lower drilling string to top of pin and engage threads.
④Locate bit and breaker in rotary table and make up to recommended torque.
4. Tripping in the Hole
①Remove breaker and lower bit through rotary table carefully.
②Trip carefully through BOPs,casing shoes and liner hangers.
③Trip slowly through ledges,dog legs and other tight sports.
④Wash last three joints to bottom with full flow at 50-60RPM.
⑤Tag bottom gently and pick up 6-12 inches off bottom.
⑥Circulate 5-10 minutes with full flow at 50-60 RPM.
5. Reaming
①Avoid small well reaming in long well sections.
②Reaming at tight spots with full flow to ensure sufficient cooling of the cutting teeth.
③Reaming with WOB of 2000-4000 pound and rotary of 50-60 RPM.
④Reaming slowly,avoid high torque.
6. Bit Break In
①Lower bit to bottom with full flow at 50-60 RPM.
②Compare expected and actual hydraulics.
③Record stand pipe pressure and pump strokes.
④After three feet,increase weight at 2000 pound and increase rotary to 100-200 RPM.
7. Drilling IN
①Determine optimum drilling parameters by changing WOB and RPM with recommended guidance.
②If torque or RPM cycling is severe,control with higher WOB or increasing RPM.
③In harder formations RPM should be reduced to maintain smooth torque and reduce cutter temperature.
8. Make Connection
①After making connection,lower to bottom slowly with full flow and 50-60 RPM.
②Check stand pipe pressure and pump strokes on and off bottom.
③Increase RPM to previous level and add WOB slowly.
9. Pulling Out of the Hole
①Slow down through tight spots,casing shoes,liner hangers and BOPS.
②Attach bit breaker and break out bit in rotary table.
③Avoid cutting damage when removing bit.
④Return bit to box after dull grading.
